0.799 Photovoltaic Solar Cell No Clean Liquid Flux For Electronics Module Welding
| Place of Origin | China |
|---|---|
| Brand Name | Wuxi Top Chemical |
| Certification | ISO9001 |
| Model Number | X-215T |
| Minimum Order Quantity | 10 tons |
| Price | Call/negotiable |
| Packaging Details | 1 container |
| Delivery Time | 5-8 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Exterior Color | Colorless, Clear And Transparent Liquidt | Solid Content (w/w)% | 1.4±0.2 |
|---|---|---|---|
| Specific Gravity (g/ml) | 0.799±0.008 | Recommended Thinner | X-C Thinner |
| Acid Value (mg KOH/g) | 16±3 | Storage Time | 12 Months |
| Advantage | Halogen-free Environmental Protection | Silver Chromate Paper Test | Passed |
| High Light | 0.799 No Clean Liquid Flux,solar cell No Clean Liquid Flux,photovoltaic liquid flux for electronics |
||
Product Description
No-clean photovoltaic flux Special flux for solar cell module welding
1. Introduction
TUOPU X-215T photovoltaic special flux is a low solid content (about 1.4% solid content), low halogen, high activity no-clean flux. It can be used for welding solar cell components.
The resin active system has excellent wettability on the surface of bare copper and solder layer.
There are very few surface residues after soldering, and the solder is uniformly bright and full and does not need to be cleaned.
2. Instructions for use
It is recommended to use TUOPU X-C special thinner, isopropanol with a purity of over 99.9% or fresh flux solution to regularly clean the flux tank and the areas where flux residues may occur in related equipment.
When changing the type of flux, use X-C thinner or 99.9% purity isopropyl alcohol to thoroughly clean the flux container.
The density and uniformity of the flux coating are critical to the successful application of no-clean flux.
3. Recommendations for general setting parameters
| project | suggested value |
| Flux soaking time | Not applicable |
| Ribbon drying temperature (refers to the temperature that the surface of the ribbon can reach) | Not applicable |
| Ribbon drying time setting (when the drying temperature increases, the drying time decreases) | Not applicable |
| The longest storage time of solder tape after soaking in flux | Not applicable |
| Ribbon welding is the set temperature of the soldering iron | 190-240℃ |
| Welding time |
2-4S |
4. Technical indicators
| Parameter | Typical Value | Parameter | Typical Value |
| Exterior color | Colorless, clear and transparent liquidt | Advantage | Higher activity |
| Solid content (w/w)% | 1.4±0.2 | Acid value (mg KOH/g) | 16±3 |
| Specific gravity (g/ml) | 0.799±0.008 | Insulation resistance (85℃/85%RH) | >1×108Ω |
| Silver chromate paper test | passed | Suggested thinner | X-C thinner |
| Closed flash point | 13℃ | Storage time |
12 months |

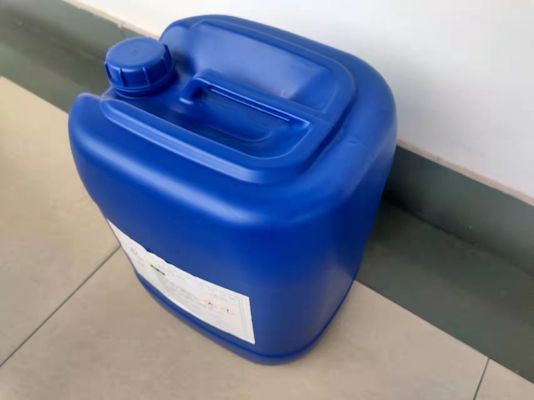

5. Flux picture
