No Clean Rosin Liquid Flux For Soldering Electronics Light Yellow Transparent Oem
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Appearance Color||Light Yellow And Transparent||Insulation Resistance (85℃/85%RH)||>1×108Ω|
|Solid Content (WT/WT)%||5±1||Specific Gravity@20℃||0.803±0.008|
|Closed Flash Point||14℃||Suggested Thinner||FD5050 Thinner|
|Storage Time||12 Months||Water-soluble Resistivity||36000Ω·cm|
0.803 gravity Rosin Liquid Flux,
no clean Rosin Liquid Flux,
liquid flux for soldering electronics oem
Special flux for soldering electronic products no-clean flux medium solid content light yellow transparent liquid
1. Features and advantages
◆ Halogen-free, high activity, medium solid content, no cleaning required, saving operating costs.
◆ Some special activators added in NS319T3 flux are used to reduce the surface tension between the solder mask and the solder, which greatly reduces the production of solder balls.
◆ The thermally stable activator in the medium solid content no-clean flux reduces the incidence of continuous welding defects in wave soldering and selective soldering.
◆ There are very few residues, no corrosive residues, no stickiness on the board surface after cooling, suitable for needle testing.
2. Instructions for use
◆ In order to meet the requirements of stable welding performance and electrical performance reliability, the process establishment related to circuit boards and components must meet the requirements of weldability and ion clarity. It is recommended that the assembler put forward relevant regulations for the supplier of related materials, and require the incoming material analysis certificate or the assembler to carry out incoming material inspection.
◆ When assembling, handle the circuit board carefully. Only hold the edge of the circuit board. It is recommended to use clean, lint-free gloves.
◆ Use FD5050 thinner to clean the conveyor belt, chain teeth and clamps regularly to avoid the increase of residues on the edge of the circuit board after assembly.
◆ When changing the type of flux, use FD5050 thinner to thoroughly clean the flux container, flux tank, flux spray system, etc.
◆ The density and uniformity of the flux coating are critical to the successful application of no-clean flux. It is recommended to use a flux coating with a density of 500 to 1500 micrograms per square inch.
◆ Preheating makes the flux on the circuit board dry, enhancing the removal of oxides and the formation of good solder joints. The preheating temperature depends on various factors, such as conveyor speed, types of devices and substrates.
◆ When using foam coating, use compressed air with degreasing and dewatering to foam, so that enough flux is maintained on the foam core. Use a pressure regulator to adjust the air pressure to produce uniform bubbles and optimal height.
◆ The flux applicator needs to add a thinner to compensate for the loss of evaporation and maintain the balance of the flux composition.
◆ Debris and contaminants will accumulate in the flux coating of the loop. For the consistency of the soldering operation, the flux that is no longer used should be disposed of on a regular basis. After emptying the flux, use the thinner to clean the container and other tasks, and then fill the container with fresh flux. The flux should be given a few minutes to stabilize before the soldering can be resumed.
3. Technical parameters
|Parameter||Typical Value||Parameter||Typical Value|
|Appearance color||light yellow and transparent||Insulation resistance (85℃/85%RH)||>1×108Ω|
|Solid content (WT/WT)%||5±1||Water-soluble resistivity||36000Ω·cm|
|Specific gravity@20℃||0.803±0.008||Silver chromate paper test||passed|
|Cl-content (WT/WT)%||0||Suggested thinner||FD5050 thinner|
|Closed flash point||14℃||Storage time||12 months

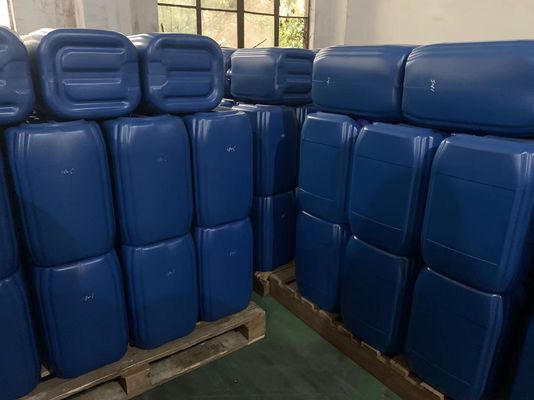

4. Flux picture
