Water Soluble Solder Flux Liquid For Soldering Halogen Free Light Yellow Transparent

Place of Origin China
Brand Name Wuxi Top Chemical
Certification ISO9001
Model Number NS319
Minimum Order Quantity 10 tons
Price Call/negotiable
Packaging Details 1 container
Delivery Time 5-8 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Appearance Ight Yellow, Clear And Transparent Liquid Product Name Rosin Type Liquid Flux
Solid Content (w/w)% 5.0±0.5 Specific Gravity (g/ml) 0.805±0.008
Cl- Content (W/W)% Not Detected Closed Flash Point 14℃
Acid Value (mg KOH/g) 25±3 Suggested Thinner FD5050 Thinner
High Light

0.805 Gravity flux liquid for soldering


flux liquid for soldering Halogen free


water soluble solder flux Light yellow

Leave a Message
Product Description

No-cleaning flux Rosin type liquid flux Light yellow clear transparent liquid


1. Features and advantages
Halogen-free, high activity, medium solid content, no cleaning required, saving operating costs.
Some special activators added in NS319 flux are used to reduce the surface tension between the solder mask and the solder, which greatly reduces the production of solder balls.
The thermally stable active agent in the medium solid content no-clean flux reduces the incidence of continuous welding defects in wave soldering and selective soldering.
Very few residues, low corrosive residues, and low viscosity on the plate surface after cooling, suitable for needle testing.


2.  Introduction
◆ NS319 no-clean flux is a no-clean flux with medium solid content (5.0% solid content), halogen-free and high activity. It can be used in foaming, spraying and other forms.

Resin active system has excellent wettability on the surface of bare copper and solder layer.
The welding of multi-layer boards with metallized small holes will show excellent penetration performance.
There are very few residues on the PCB surface after soldering, and the solder joints are uniform and bright and full and can be tested without cleaning.


3. Technical indicators

Parameter Typical Value
product name Rosin type liquid flux
Appearance light yellow, clear and transparent liquid
Solid content (w/w)% 5.0±0.5
Specific gravity (g/ml) 0.805±0.008
Cl- content (W/W)% not detected
Closed flash point 14℃
Acid value (mg KOH/g)
Suggested thinner FD5050 thinner

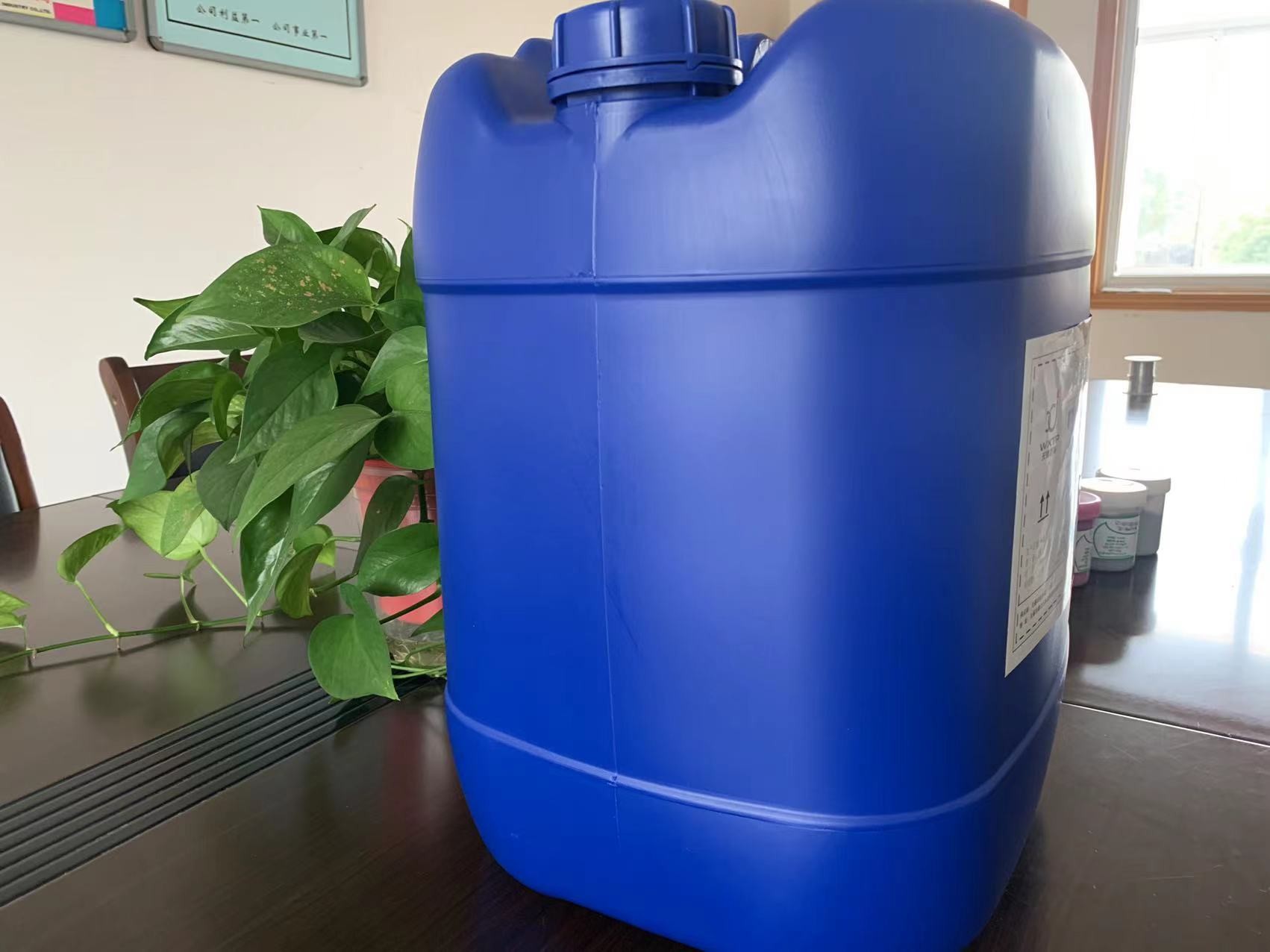

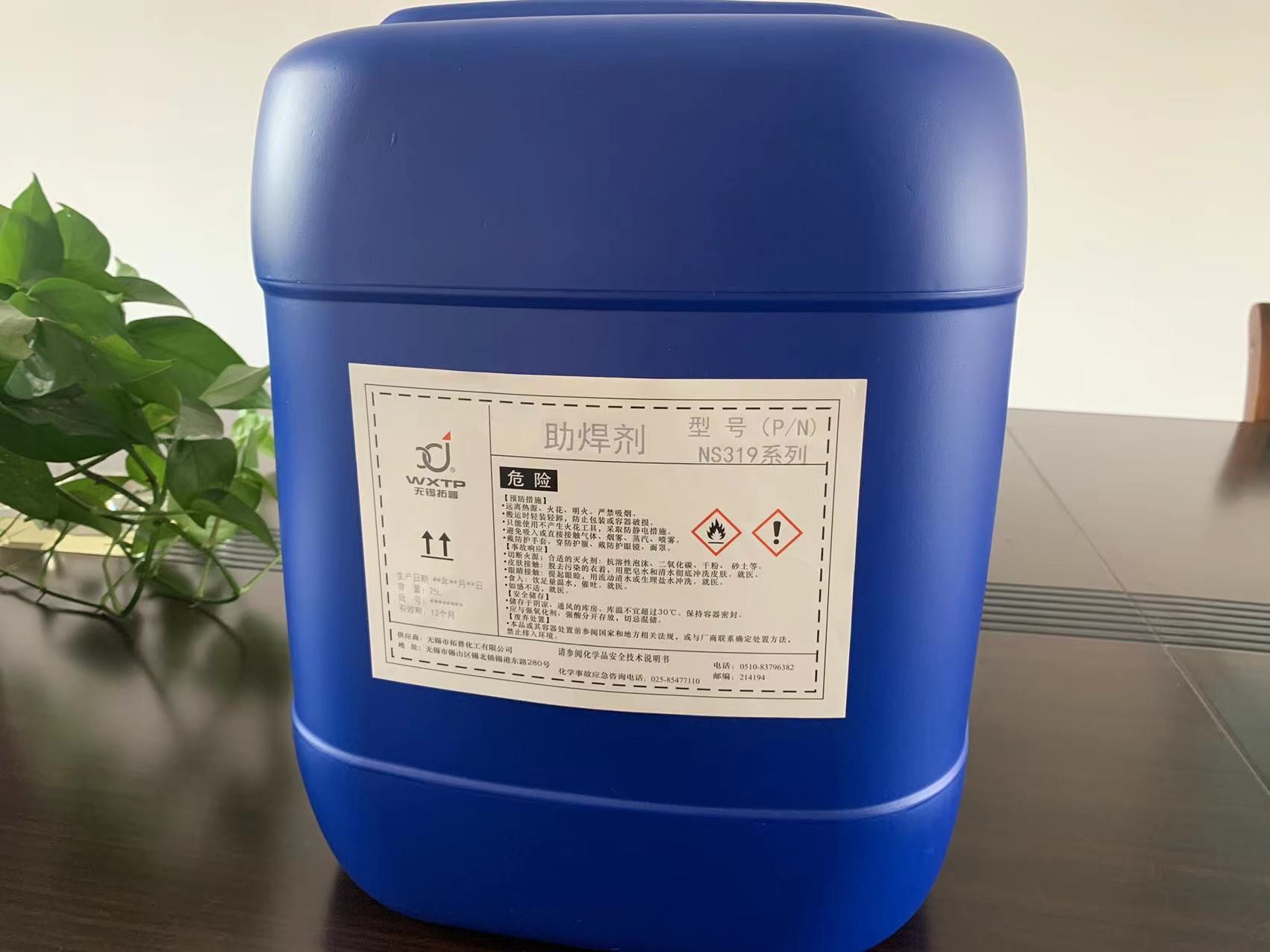

4. Rosin type liquid flux picture
Water Soluble Solder Flux Liquid For Soldering Halogen Free Light Yellow Transparent 0
