Insulation Circuit Board Conformal Coating For Electronics Corrosion Resistance

Place of Origin China
Brand Name Wuxi Top Chemical
Certification ISO9001
Model Number 8562B
Minimum Order Quantity 1 tons
Price Call/negotiable
Packaging Details 1 container
Delivery Time 5-8 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50 tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Appearance Full Gloss/varnish Color ≤5 Gardner (Gardner Standard)
Viscosity 20±2Sec(25℃ Ford Cup#4) Solid Conten About 41%
Insulation Degree >3KV@30UM (dry Film Meter) Coverage Area 1.5 Square Meters/liter
Main Ingredient Alkylated Resin Proportion About 0.90
High Light

insulation Conformal Coating For Electronics

,

22 sec Conformal Coating For Electronics

,

circuit board conformal coating corrosion resistance

Leave a Message
Product Description

High insulation performance special three-proof paint for electronic products excellent heat dissipation performance​





1.product description
This paint is made of high-quality air-drying hydrocarbon resin. The paint film has a combination of high solids. It is mainly designed
It is designed to protect and provide high insulation performance in electrical products. This product can provide excellent electrical conductivity after fully cured.
It has excellent heat dissipation performance and can reduce product vibration, noise, temperature rise, magnetic leakage and other phenomena. It is extremely strong
High flexibility and excellent anti-rust and chemical corrosion resistance.



2.Applicable range
All kinds of power transformers, high and low frequency transformers, current transformers, circuit boards, computer components, coils,
Large, medium and small electric motor cores, etc.

Suitable for all kinds of power transformers, high and low frequency transformers, current transformers, circuit boards, computer components, coils, large, medium and small electric motor cores, etc.



8562B  has very strong high flexibility and excellent anti-rust and chemical corrosion resistance.



3. Construction method
Generally, impregnation and vacuum pressure impregnation are used.
This type of paint is suitable for oil coating, brush coating and penetration coating methods. Dilution and tool cleaning can be used T871Y
Kind of industrial thinner.



4. Packing
18 liters.
【Precautions】
In order to ensure the stability of the paint, please do not stir the paint forcefully to avoid air bubbles in the product.
After being soaked and air-dried, it can be placed in an oven below 90℃ to accelerate the solidification of the paint film. If the temperature is too high,
It will melt the plastic parts.

5. Safety Code
Extremely flammable, please store in a qualified dangerous goods warehouse.
Keep air circulation during construction.
If you accidentally get into your eyes, immediately rinse with water and send to a doctor for treatment as soon as possible.



6. Technical indicators

Parameter Typical value Parameter Typical value
Main ingredient Alkylated resin Insulation degree >3KV@30UM (dry film meter)
Appearance full gloss/varnish Coverage area 1.5 square meters/liter
Color ≤5 Gardner (Gardner standard) Drying time surface-drying, air-drying at room temperature for 15 minutes
Air dry at room temperature for 16 hours
Proportion about 0.90 Accelerated baking  The temperature is generally not less than 80℃, and the time is generally not less than 2 hours
Viscosity  20±2Sec(25℃ Ford Cup#4)  Solid content about 41%

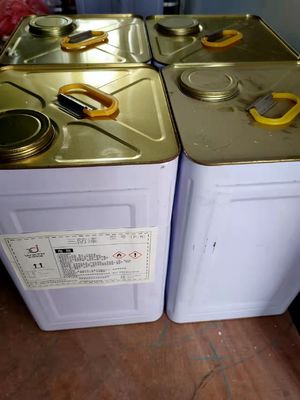

7. In kind​ picture
Insulation Circuit Board Conformal Coating For Electronics Corrosion Resistance 0
