Hydrocarbon Resin Flexible Conformal Coating For Electronics 20 Sec Conductivity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xAppearance | Full Gloss/varnish | Main Ingredient | Alkylated Resin |
---|---|---|---|
Color | ≤5 Gardner (Gardner Standard) | Viscosity | 20±2Sec(25℃ Ford Cup#4) |
Advantage | Excellent Conductivity And Insulation | Shelf Life | 6 Months |
Insulation Degree | >3KV@30UM (dry Film Meter) | Coverage Area | 1.5 Square Meters/liter |
High Light | hydrocarbon resin Conformal Coating For Electronics,Conformal Coating For Electronic 20 sec s,flexible conformal coating conductivity |
High-quality air-dried hydrocarbon resin three-proof paint all-gloss varnish excellent conductivity and insulation
This paint is made of high-quality air-drying hydrocarbon resin, and has excellent heat dissipation performance, and can reduce product vibration, noise, temperature rise, magnetic flux leakage and other phenomena. It has extremely high flexibility and anti-rust and anti-chemical corrosion. Excellent sex.
1. product description
This paint is made of high-quality air-drying hydrocarbon resin. The paint film has a combination of high solids. It is mainly designed
It is designed to protect and provide high insulation performance in electrical products. This product can provide excellent electrical conductivity after fully cured.
It has excellent heat dissipation performance and can reduce product vibration, noise, temperature rise, magnetic leakage and other phenomena. It is extremely strong
High flexibility and excellent anti-rust and chemical corrosion resistance.
2. Applicable range
All kinds of power transformers, high and low frequency transformers, current transformers, circuit boards, computer components, coils,
Large, medium and small electric motor cores, etc.
Suitable for all kinds of power transformers, high and low frequency transformers, current transformers, circuit boards, computer components, coils, large, medium and small electric motor cores, etc.
3. Construction method
Generally, impregnation and vacuum pressure impregnation are used.
This type of paint is suitable for oil coating, brush coating and penetration coating methods. Dilution and tool cleaning can be used T871Y
Kind of industrial thinner.
18 liters.
【Precautions】
In order to ensure the stability of the paint, please do not stir the paint forcefully to avoid air bubbles in the product.
After being soaked and air-dried, it can be placed in an oven below 90℃ to accelerate the solidification of the paint film. If the temperature is too high,
It will melt the plastic parts.
5. Safety Code
Extremely flammable, please store in a qualified dangerous goods warehouse.
Keep air circulation during construction.
If you accidentally get into your eyes, immediately rinse with water and send to a doctor for treatment as soon as possible.
6. Technical indicators
Parameter | Typical value | Parameter | Typical value |
Main ingredient | Alkylated resin | Insulation degree | >3KV@30UM (dry film meter) |
Appearance | full gloss/varnish | Coverage area | 1.5 square meters/liter |
Color | ≤5 Gardner (Gardner standard) | Drying time | surface-drying, air-drying at room temperature for 15 minutes Air dry at room temperature for 16 hours |
Proportion | about 0.90 | Accelerated baking | The temperature is generally not less than 80℃, and the time is generally not less than 2 hours |
Viscosity | 20±2Sec(25℃ Ford Cup#4) | Solid content | about 41% |

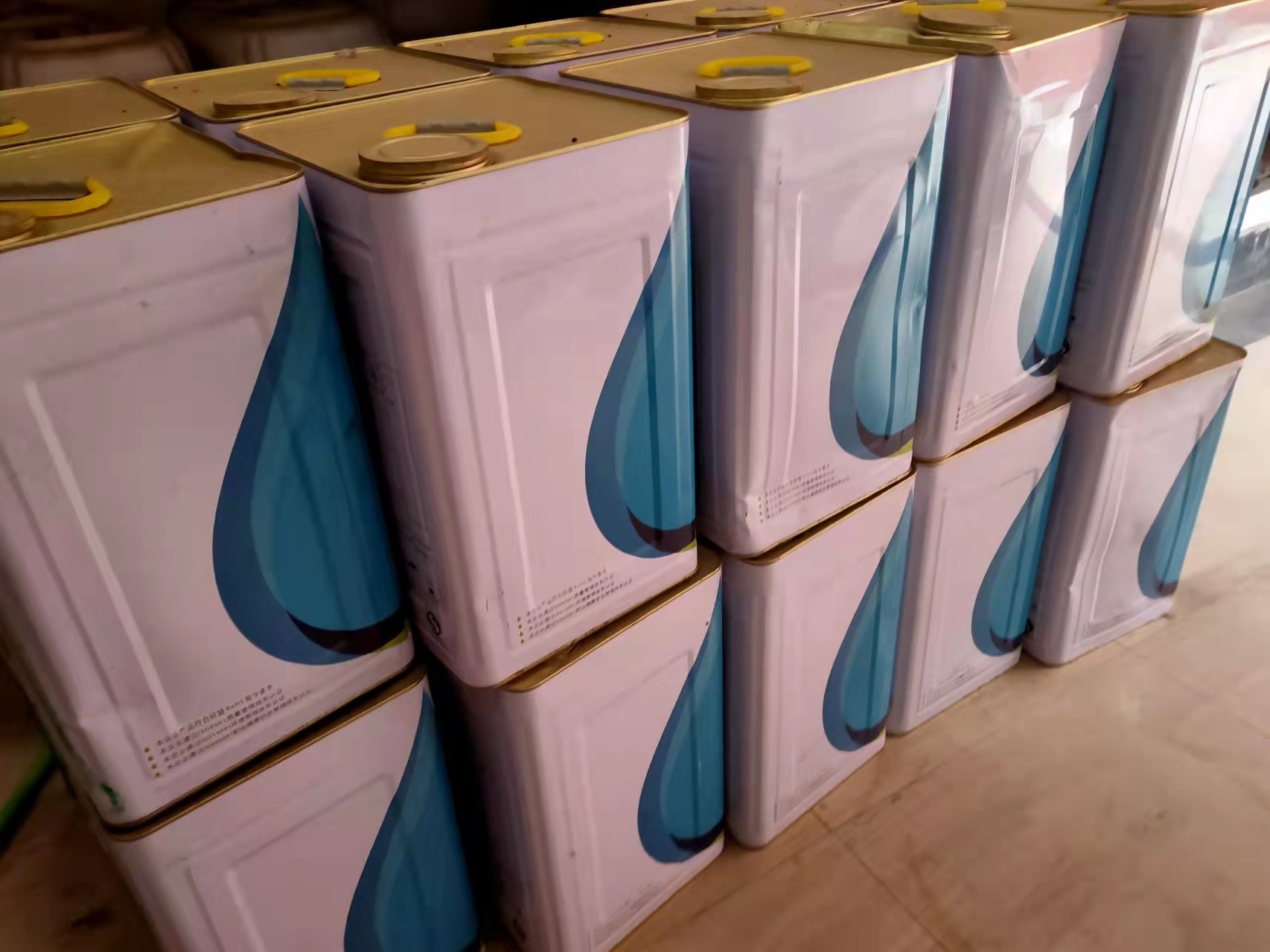

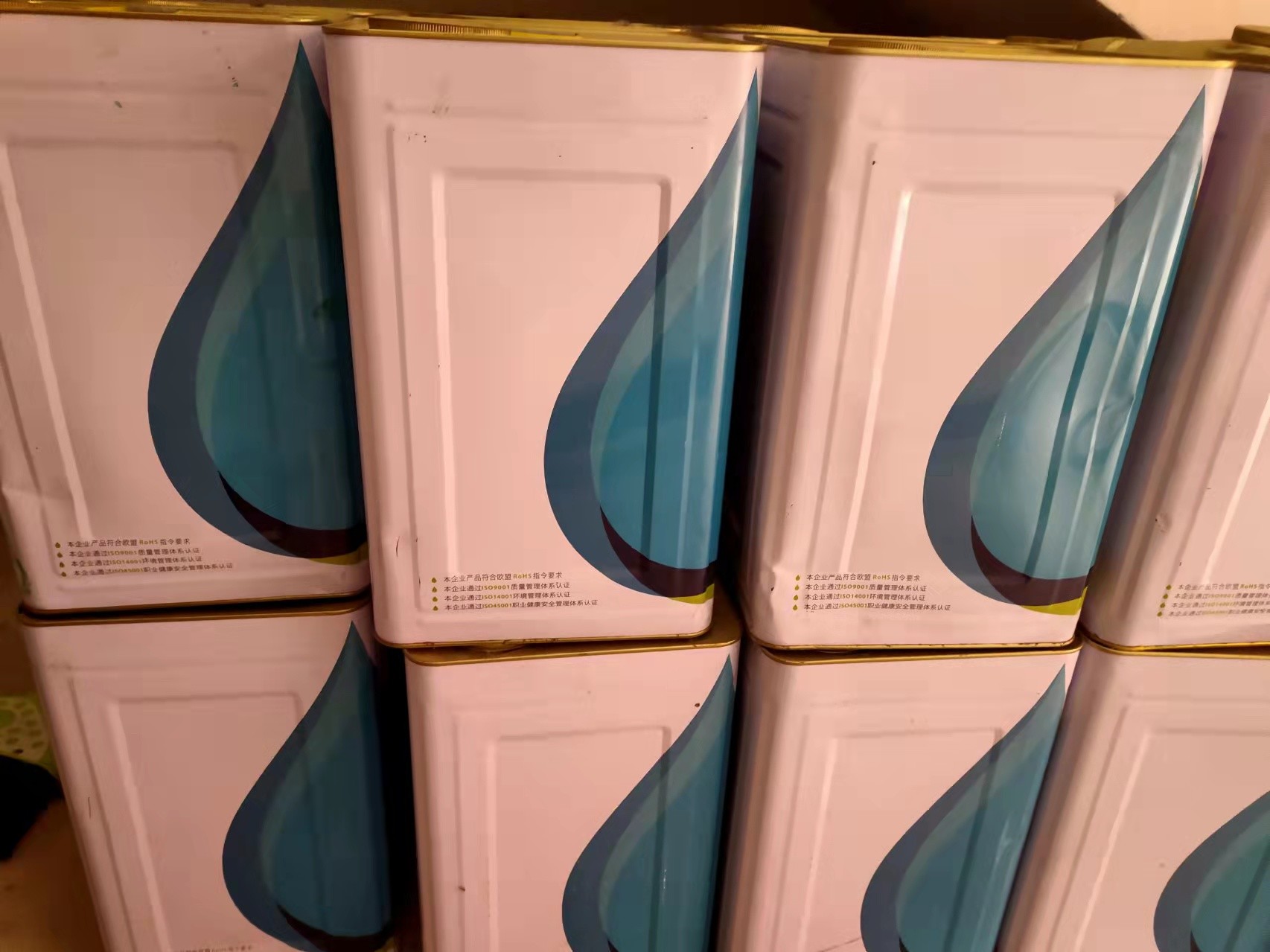

7. Three anti-paint picture
