280C High Temperature Red Heat Resistant Glue Smt Needle Tube Adhesive Paste
| Place of Origin | China |
|---|---|
| Brand Name | Wuxi Top Chemical |
| Certification | ISO9001 |
| Model Number | HT-130-AL |
| Minimum Order Quantity | 1 tons |
| Price | Call/negotiable |
| Packaging Details | 1 container |
| Delivery Time | 5-8 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insulation Resistance (Ω) | ≥ 1×1012 | Thixotropy Index | ≥ 4.0 |
|---|---|---|---|
| Curing Conditions | See 3 Page | Copper Plate Corrosion | None |
| Moisture Absorption (wt%) | ≤ 1.0 | Tensile Strength (kgf/cm2) | 120 |
| Dielectric Constant | ≤ 3.8 | ||
| High Light | 280C heat resistant glue,heat resistant glue Needle tube,280C high temperature red glue smt |
||
Product Description
Polyethylene compound for fixing electronic components Needle tube red paste
HT-130-AL red glue, epoxy resin (rapid thermal hardening effect) adhesive. Because it has the characteristics of vacuum packaging and "Shear-Thinning" Viscosity Characteristic, it is suitable for high-speed dispensers (40,000~40,500 points/hour). Because of its high temperature solidification (280℃-285℃) characteristics, this product Also suitable for lead-free soldering.
1.Application:
Bond various CHIPS on the PCB board before entering the wave soldering.
This product is especially suitable for high-speed dispensers and screen printing.
2.Physical characteristics:
|
ITEM
|
RESULTS
|
Test Methods |
| Appearance | red paste | HT-1 |
| Viscosity (poise) | 500 ~ 600 | HT-2-1 |
| Thixotropy index | ≥ 4.0 | HT-3-1 |
| Specific gravity | 1.0 ~ 1.4 | HT-4 |
| Curing conditions | See 3 Page | HT-5-1 |
| Copper plate corrosion | None | HT-6-1 |
| Moisture Absorption (wt%) | ≤ 1.0 | HT-7-1 |
| Tensile strength (kgf/cm2) | 120 | HT-8-1 |
| Insulation resistance (Ω) | ≥ 1×1012 | HT-9-1 |
| Dielectric constant | ≤ 3.8 | HT-10-1 |
| Glass transition temperature | ≥ 110℃ | HT-11 |
| Heat resistance (280~285℃) | 11 ~ 15 sec | HT-12-2 |
| Adhering strength (kg/f) | ≥ 2.0 | HT-13-1 |
| Storage conditions | 5 ~ 10℃, ≤ 40% | HT-14 |
| Validity period | 6 months | HT-15 |

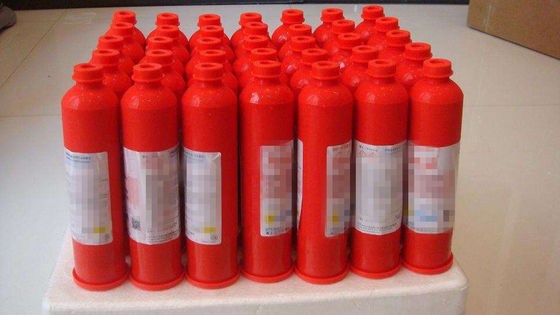

3.Product Image:
